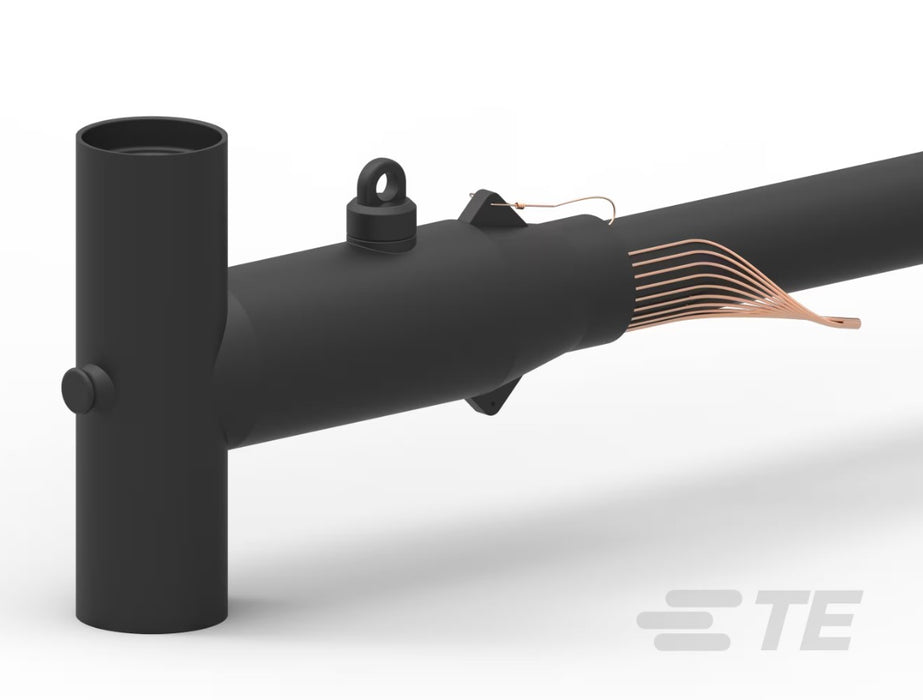

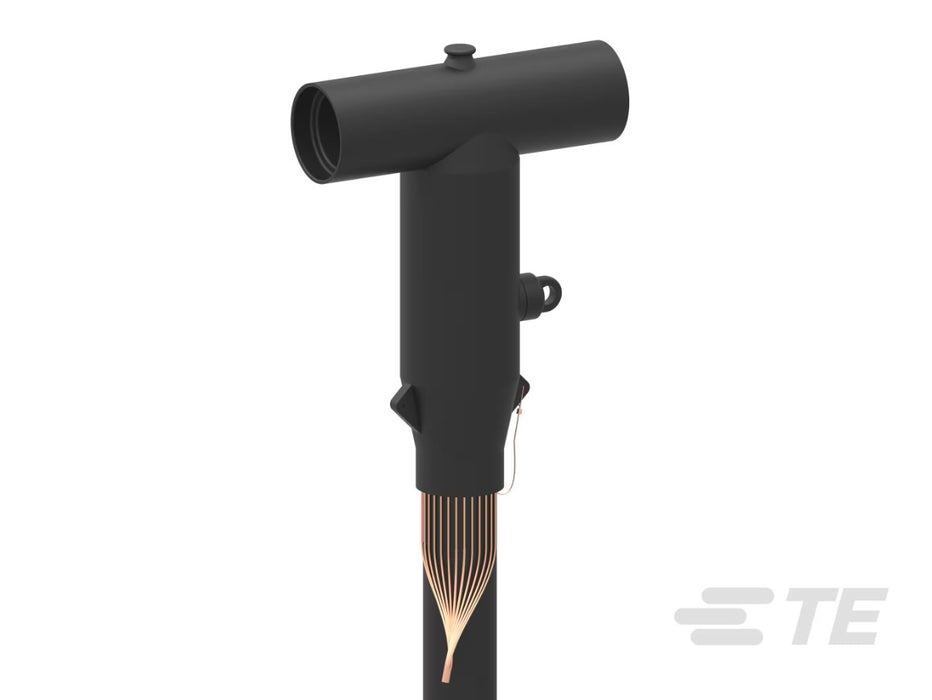

TE Connectivity 35 kV 600A T-Body Elbow Connectors

TE Connectivity’s (TE) Raychem T-Body Elbow Connectors are designed to terminate underground cables to high voltage apparatus such as transformers and switchgear. They are fully shielded and submersible and meet the requirements of IEEE 386.

Features:

• Peroxide cured EPDM rubber ensures low tension set and high dielectric strength
• 100% factory production tested for partial discharge and AC Hipot per IEEE 386
• Molded semiconducting shield provides ground shield continuity per the requirements of IEEE 592
• Meets IEEE 386-2006 specification requirements

Applications:

• Designed to terminate underground cables to high-voltage apparatus such as transformers and switchgear.
• Designed for use on extruded (XLPE or EPR) solid dielectric cable. The conductor range is from #1 AWG to 1250 kcmil for aluminum or copper conductors with insulation diameters from .930" - 2.145".

Benefits:

• Interchangeable with other manufacturers products that conform with this industry standard.
• Optional capacitive test point provided on elbow.
• Fits 35 kV cables up to 1250 kcmil.
• 200 kV BIL design available.
• Exceeds insulation level requirements in IEEE 386.
