AEMC 5KV MEGOHMMETER 5060 CAT# 2130.21

Ideal for large motors, generators, transformers, and more. AC/battery powered, GΩ/TΩ measurement range, and multifunction capability for comprehensive testing.

APPLICATIONS

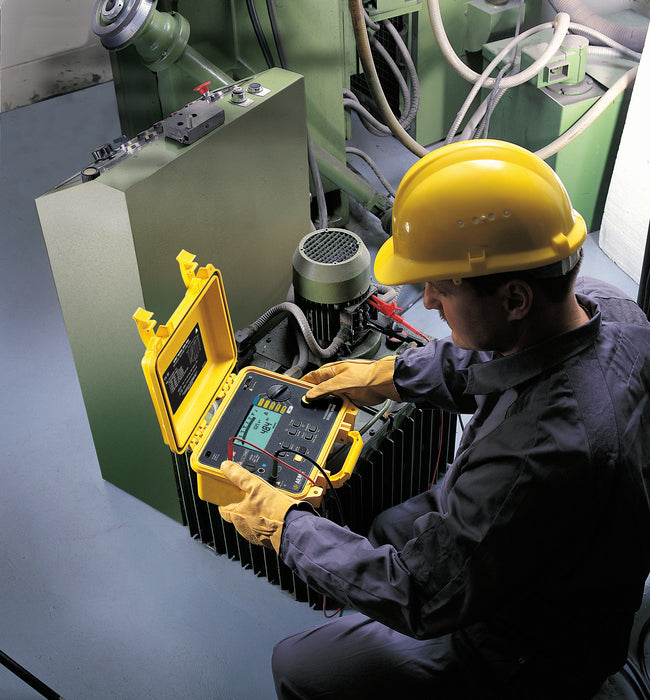

• Test insulation on cables, transformers, motors, generators, insulators
and wiring installations
• High resistance or absorption tests
• Spot reading tests
• Timed resistance measurements
• Dielectric Absorption Ratio (DAR) and Polarization Index (PI) tests
• Multi-layer insulation testing (Dielectric Discharge)
• Test old or water damaged installations over long time runs

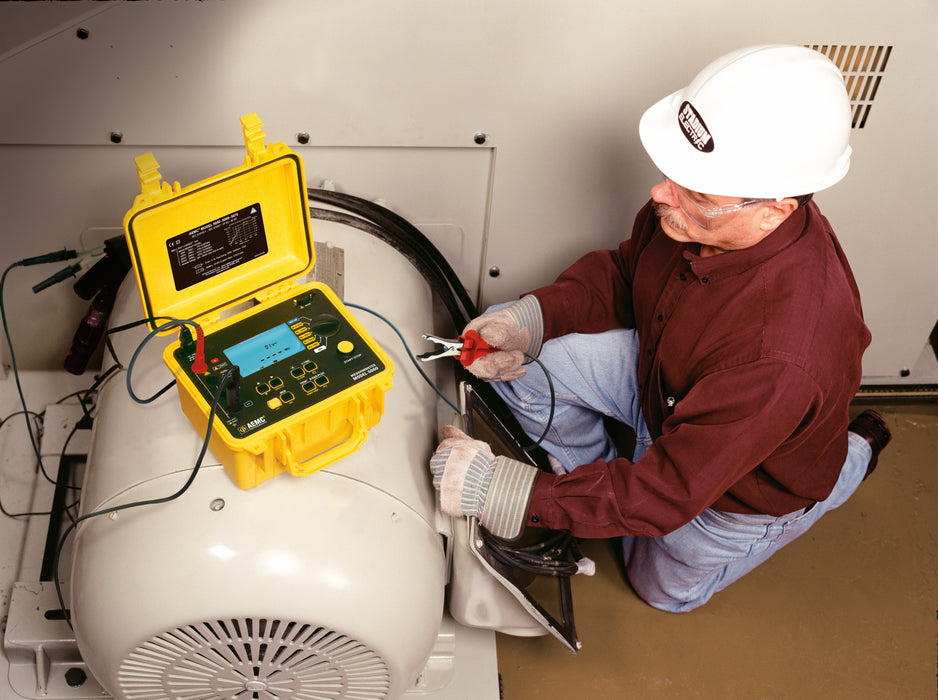

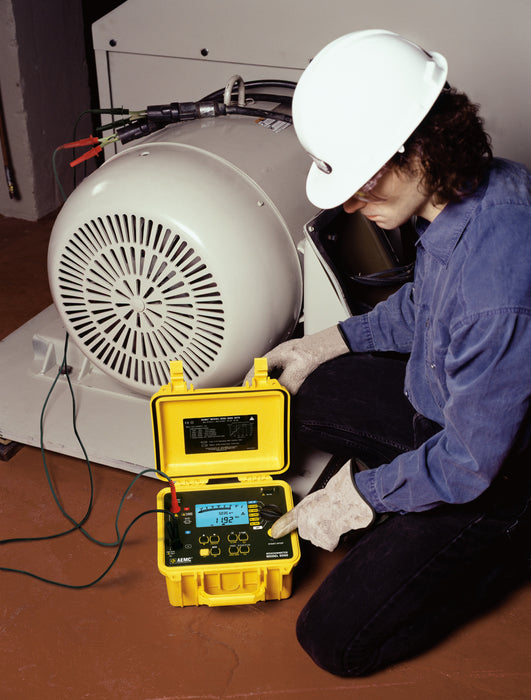

• Motor insulation resistance measurements
• Programmable alarm settings
• Predictive maintenance by storing results in PC for trend analysis (Model dependent)
• User selectable voltage testing to provide application specific testing

FEATURES
• True Megohmmeter®
• Test voltage selections of (500, 1000, 2500, and 5000) V
• Variable test voltage from (50 to 5100) V (Model 5060)
• Wide measurement range up to 10 TΩ
• Automatic discharge at the completion of the test
• Measure AC voltage up to 4000 V
• Automatic test inhibit if live voltage detected above a set value
• Programmable alarms for all functions
• Automatic calculation of DAR, PI and DD ratios

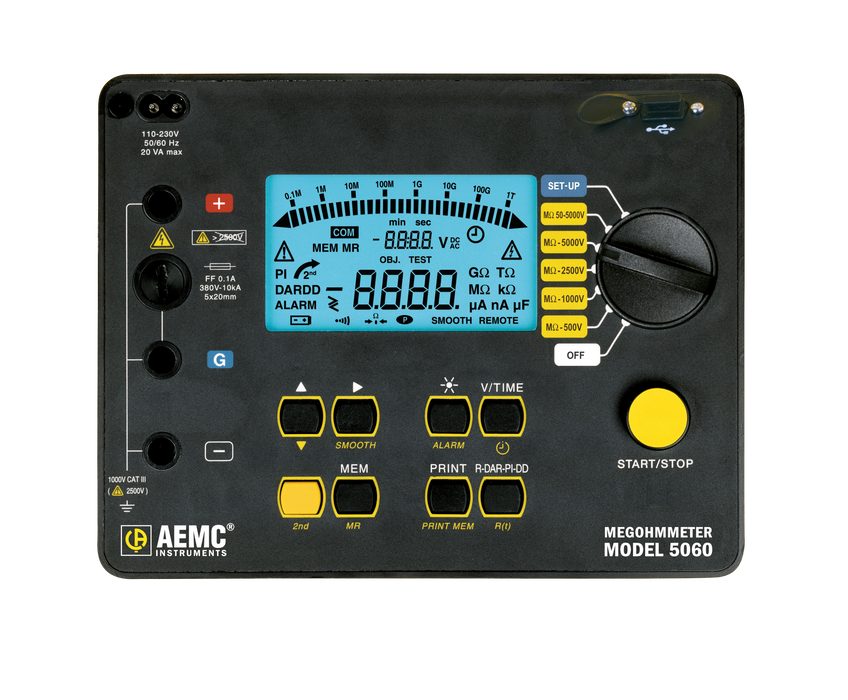

• Large, backlit LCD screen with digital display and bargraph
• Measures capacitance up to 49.99 μf
• Stores up to 1500 measurements (Model 5060)

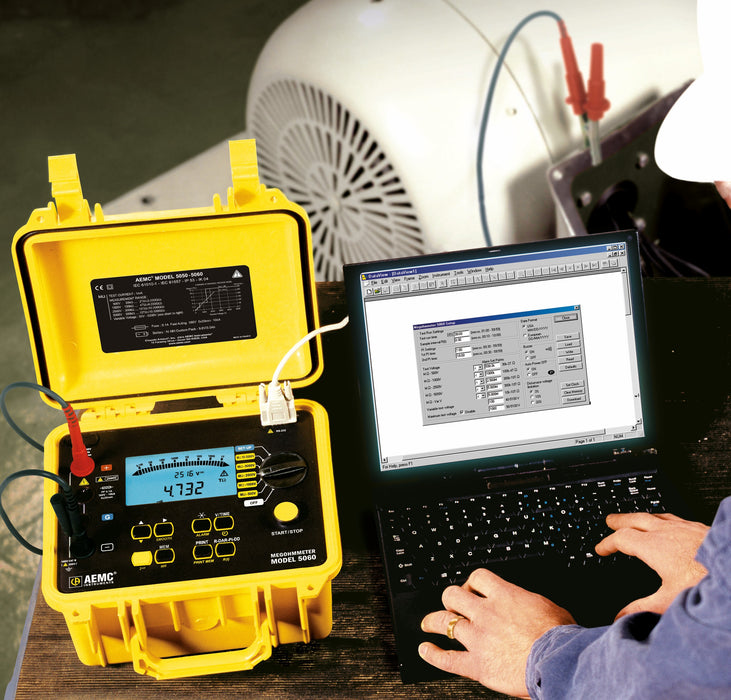

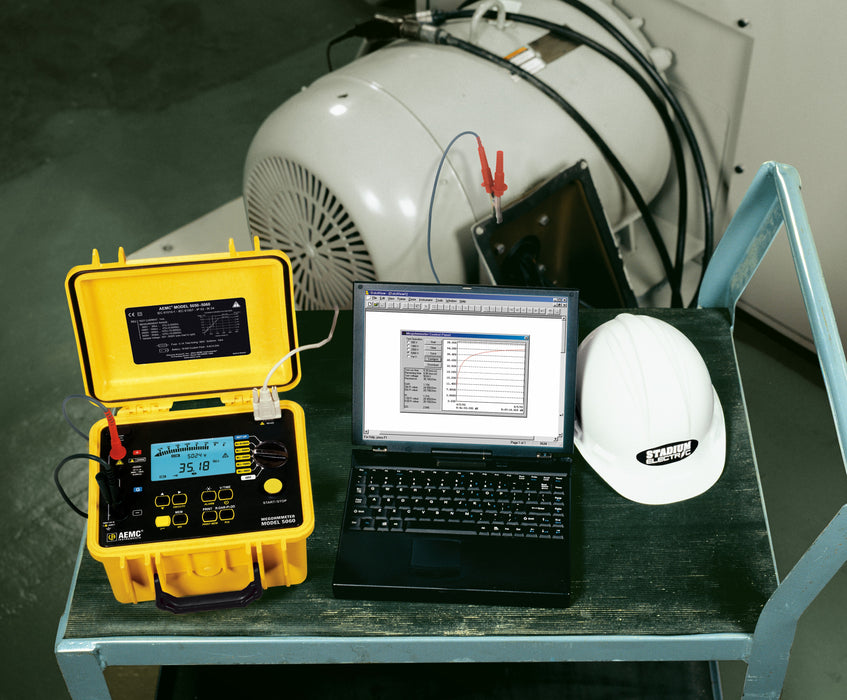

• Includes DataView® software for data retrieval, real-time display, analysis and report generation
