TE Connectivity ELB-15-210 15 KV, 200A Loadbreak Elbow

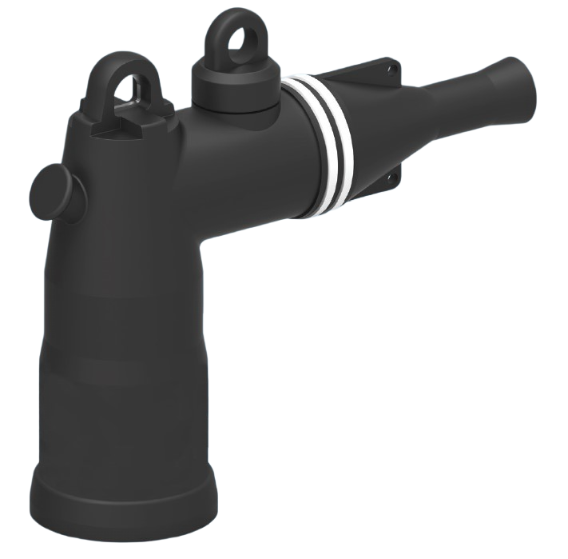

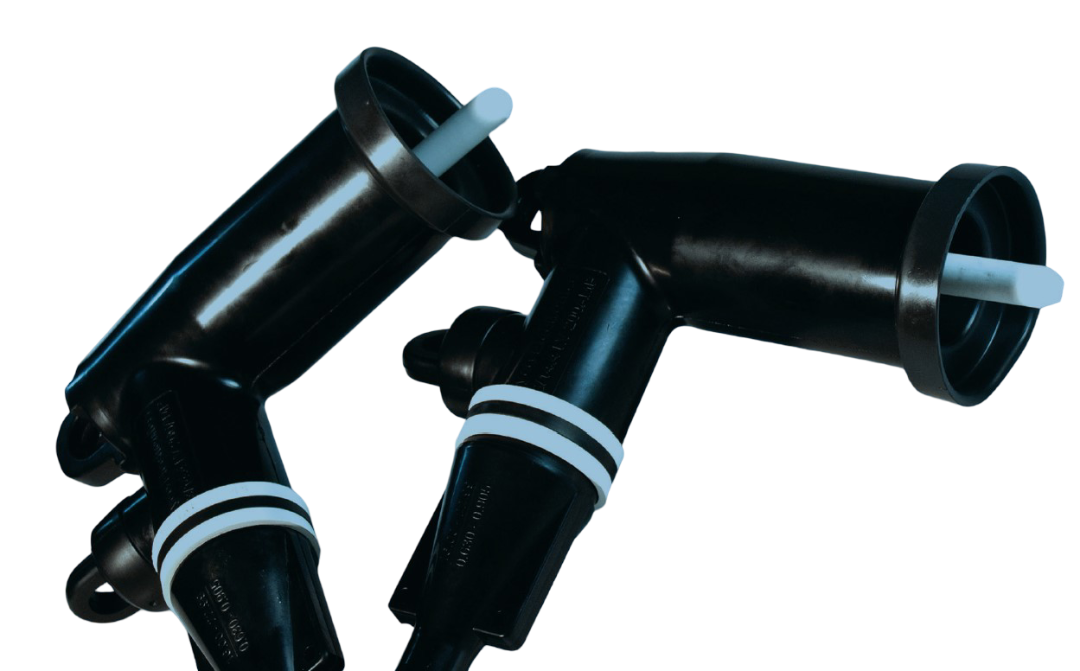

TE Connectivity’s (TE) ELB-15-210 elbows are designed to terminate underground cables to high-voltage apparatus such as transformers and switchgear that are equipped with bushings. They are fully shielded and fully submersible and are designed in accordance to IEEE Standard 386 – latest revision. Loadbreak elbows are designed for use with standard hotstick tools, which allows a loadmake/break operation with a physical disconnect.

They are designed for use on extruded (XLPE or EPR) solid dielectric cable. The conductor range is from #2 AWG to 250 kcmil for aluminum or copper conductors with insulation diameters from 0.370” to 1.060”.

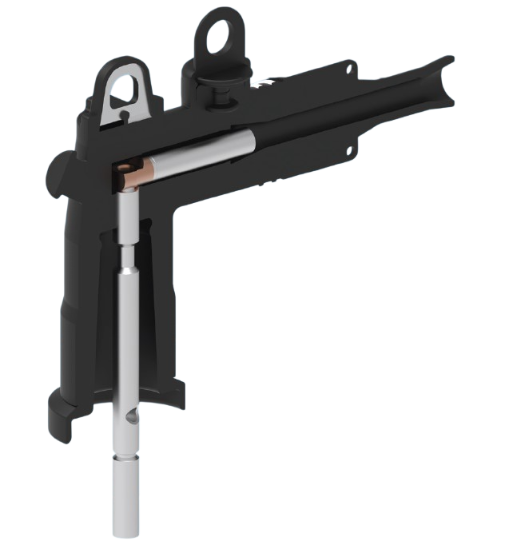

This 200A Loadbreak elbow includes a copper top compression connector, which connects the cable with the loadbreak probe. This connector is easy to crimp, is suitable for aluminum and copper conductors, and forms a reliable connection.

KEY FEATURES

• Peroxide cured EPDM rubber ensures low tension set and high dielectric strength
• 100% factory production tested for partial discharge and AC Hipot per IEEE 386
• Capacitive test point
• Fits 15 kV cables up to 250 kcmil
• Molded semiconducting shield provides ground shield continuity in accordance with IEEE 592
• Conforms to IEEE Standard 386
