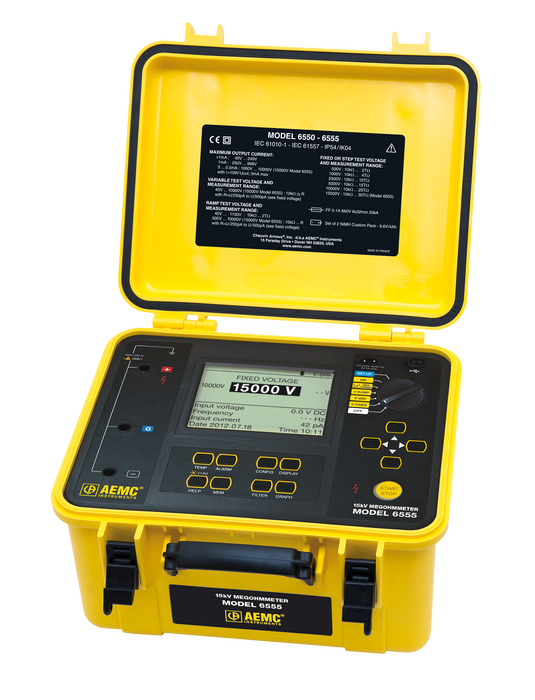

AEMC 15KV MEGOHMMETER 6555 CAT#2130.32

Ideal for use on rotating machinery, transformers and cables operating at higher voltages

FEATURES
• True Megohmmeter®
• Fixed or programmable test voltage from 40 V to (10/15) kV
• Wide measurement range from 10 kΩ to (25/30) TΩ
• 5 mA short circuit current
• Step and Ramp voltage testing
• Automatic calculation of DAR/PI/DD/ΔR (ppm/V) ratios
• Large, backlit graphical LCD screen with digital display, bargraph and R(t)+V(t), I(t) and I(V) graphs
• Multiple test modes: voltage Ramp and Step with Burn-In, Early-Break and I-Limit modes
• Three filter settings to optimize measurement stability
• Calculation of R at a reference temperature
• Storage of 80,000 measurements
• Includes DataView® software for data retrieval, real-time display, analysis and report generation
• Optically-isolated USB communication for transfer onto PC and report generation with DataView® software

PRODUCT INCLUDES
Small classic tool bag, set of (3) 10 ft color-coded (red/blue/black) safety leads with clips (3000 V CAT III), (1) 15 kV jumper lead (blue), optical USB cable, 115 V US power cord, 9.6 V rechargeable NiMH batteries, and a USB drive with DataView® software and user manual.
